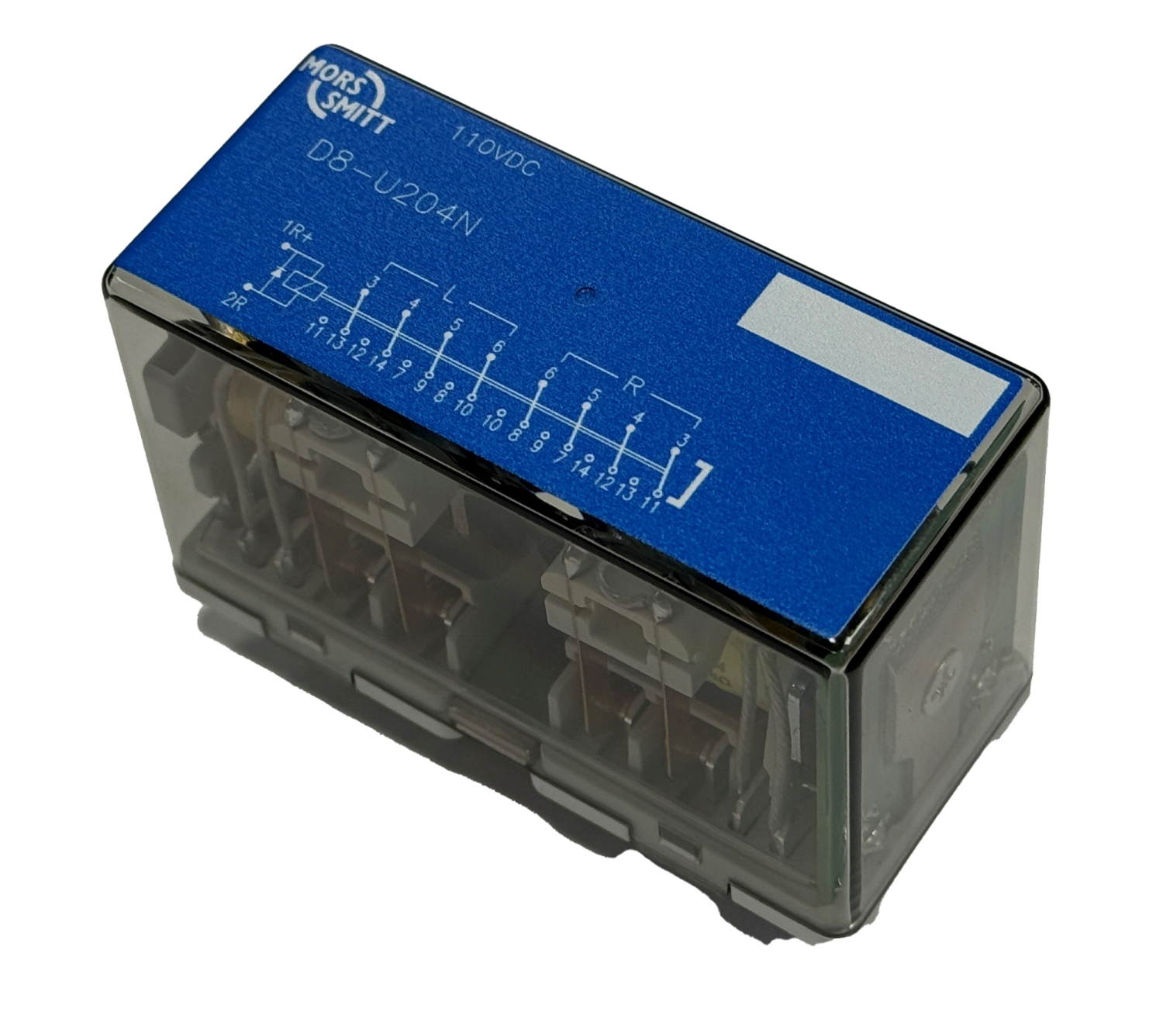

D8-U200N relay - Plug-in, 8 pole

Description

Plug-in railway relay with eight change-over contacts. Standard equipped with a back EMF suppression diode and magnetic arc blow-out for high breaking capacity and long contact life.

The construction of the relay and choice of materials makes the D8-U200N relay suitable to withstand corrosive atmospheres, low and high temperatures, shock & vibrating and dry to very humid environments.

No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions.

Compact design, choice of many options and a wide range of sockets make the D8-U200N relay an easy and flexible solution to use.

Application

These relays are designed for demanding rolling stock applications. The
D8-U200N is used in applications where eight contacts are used in one relay.

Features

Compact plug-in design
Instantaneous, 8 C/O contacts
Back EMF suppression diode
Magnetic arc blow-out
Flat, square and silver plated relay pins for excellent socket connection
Wide range sockets
2 integrated snap locks
Transparent cover
High DC breaking capacity
Optional positive mechanical keying relay to socket
Flexibility by many options
Benefits
Proven reliable
Long term availability
Easy to maintain
Low life cycle cost
No maintenance

Railway compliancy

EN 50155 Electronic equipment used on rolling stock for railway applications
IEC 60571 Electronic equipment used on railway vehicles
IEC 60077 Electrical equipment for rolling stock in railway applications
IEC 60947 Low voltage switch gear and control gear
IEC 61373 Rolling stock equipment - Shock and vibration test
EN 50121 Electromagnetic compatibility for railway applications
NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
IEC 60529 European standard describes the protection class (IP-code)
NF F 62-002 On-off contact relays and fixed connections
