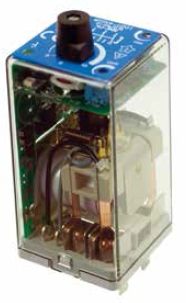

MTDV4-U200 relay - Voltage monitoring, timer delay-on /-off, 4 pole

Name: MTDV4-U200 relay - Voltage monitoring, timer delay-on /-off, 4 pole
Brand: Eigen merk
Availability: InStock

Informatie

Description

Plug-in electronic voltage monitoring relay with optional delay-on and delay-off timer function and four change-over contacts. The delay time is adjustable with a lockable knob (either delay-on or delay-off, the other delay is fixed). The relay can also be supplied with fixed time delays (no knob). The pull-in voltage and drop-out voltage are both adjustable via internal screws. The relay can also be supplied with a fixed pull-in and drop-out voltage. Suitable for monitoring DC voltages.

The MTDV4-U200 offers a very small hysteresis (difference between pull-in and drop-out voltage). The relay is equipped with a LED which indicates the status of the relay contacts. Delay-off function for voltage drop up to 50% nominal voltage, no auxiliary supply necessary.

Standard equipped with magnetic arc blow-out for high breaking capacity and long contact life.

The construction of the relay and choice of materials makes the MTDV4- U200 relay suitable to withstand low and high temperatures, shock & vibrating and dry to humid environments. No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions.

Application

These relays are designed for demanding rolling stock applications. The MTDV4-U200 is used in applications for voltage monitoring with or without time delay(s).

Features

DC voltage monitoring relay with time delay
Compact plug-in design
4 C/O contacts
Pull-in and drop-out voltage adjustable via internal screws
Also available with fixed pull-in and drop-out voltage (no internal screws)
Very small hysteresis possible
Time delay on pull-in and/or drop-out
1 delay time adjustable with a lockable knob, other delay time fixed
Also available with fixed time delays (no knob)
Time delay range: 0 ... 60 s
No auxiliary supply necessary
1 LED for status indication

Benefits

Flat, square and silver plated relay pins for excellent socket connection
Integrated snap lock
Optional positive mechanical keying relay to socket

Railway compliancy

EN 50155 Electronic equipment used on rolling stock for railway applications
IEC 60571 Electronic equipment used on railway vehicles
IEC 60077 Electrical equipment for rolling stock in railway applications
IEC 60947 Low voltage switch gear and control gear
IEC 61373 Rolling stock equipment - Shock and vibration test
IEC 60947-5-4 Electromechanical components for control applications. This standard examines both coil and contact specifications in depth
EN 50121 Electromagnetic compatibility for railway applications
NF F 16-101/102, EN 45545-2 Fire behaviour - Railway rolling stock
NF F 62-002 On-off contact relays and fixed connections
