CU-U300-G relay - Miniature, AC coil

Name: CU-U300-G relay - Miniature, AC coil
Brand: Eigen merk
Availability: InStock

Informatie

Description

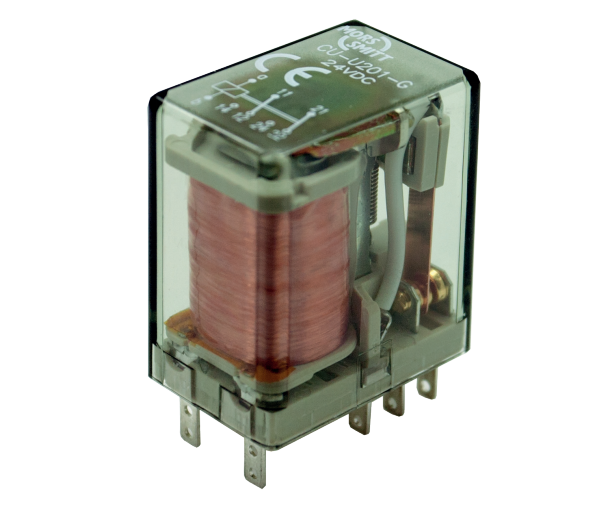

Miniature railway relay with two change-over contacts suitable for AC coil voltages with a frequency of 50/60 Hz. The contacts are weld-no-transfer contacts: they are mechanically forced in the same position. Standard with high insulation because of flash barrier. Relay for plug-in mounting (CU version) or for PCB mounting (CP version).

The construction of the relay and choice of materials makes the CU/CP-U300-G relay suitable to withstand corrosive atmospheres, low and high temperatures, shock & vibrating and dry to very humid environments.

With a very compact design and a wide range of sockets, the CU/CP-U300-G relay is an easy and flexible solution to use.

Application

These relay series are designed for rolling stock applications where available space is limited.

Features

Miniature plug-in / PCB relay
AC coil
Instantaneous, 2 C/O contacts
Weld-no-transfer contacts
Flat, square and tin plated relay pins for excellent socket connection / PCB mounting pins
Wide range sockets
Transparent cover
High insulation because of flash barrier
Optional positive mechanical keying relay to socket
