TDDB-U300 relay - Timer, delay-on, AC input, delay on 4 pole

Name: TDDB-U300 relay - Timer, delay-on, AC input, delay on 4 pole
Brand: Eigen merk
Availability: InStock

Informatie

Description

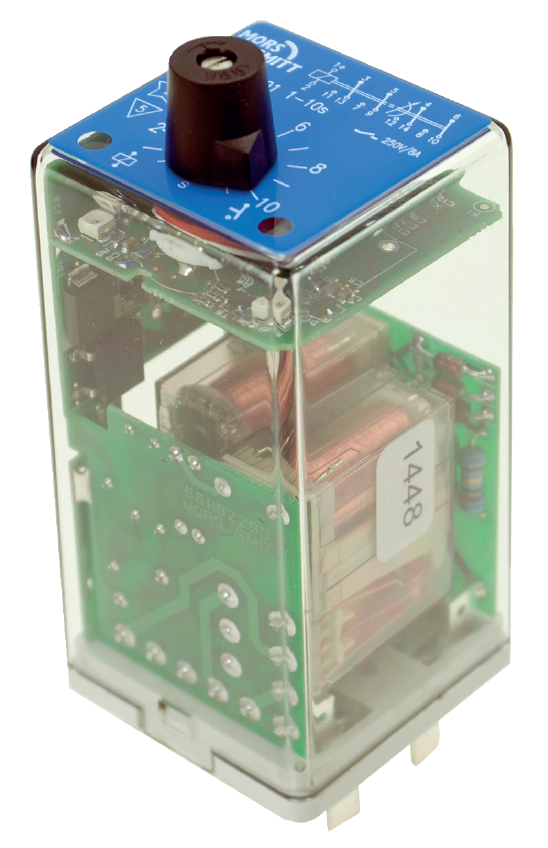

Plug-in electronic railway timer relay with two instantaneous change-over contacts and two time delayed change-over contacts. When the relay is activated there is a delay on pull-in for the time delayed contacts. The delay time is adjustable with a lockable knob. The relay can also be supplied with a fixed time delay (no knob). The relay is equipped with two LEDs to indicate presence of power supply and energizing of the coil.

The construction of the relay and choice of material makes the TDDB-U200 /U300 relay suitable to withstand low and high temperatures, shock &
vibrating and dry to humid environments.

No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions.

Compact design, choice of many options and a wide range of sockets makes the TDDB-U200/U300 relay an easy and flexible solution to use.

Application

These relay series are designed for demanding rolling stock applications.
The TDDB-U200/U300 is used in applications where instantaneous contacts and contacts with a time delay are necessary.

Features

Time delay relay and instantaneous relay
Compact plug-in design
2 C/O contacts with delay on pull-in and 2 C/O instantaneous contacts
Delay time adjustable with a lockable knob
Also available with fixed time delay (no knob)
Two LEDs for status indication
Flat, square and silver plated relay pins for excellent socket connection
Wide range sockets
Integrated snap lock
Transparent cover
Optional positive mechanical keying relay to socket

Benefits

Proven reliable
Long term availability
Easy to maintain
Low life cycle cost
No maintenance

Railway compliancy

EN 50155 Electronic equipment used on rolling stock for railway applications
IEC 60571 Electronic equipment used on railway vehicles
IEC 60077 Electrical equipment for rolling stock in railway applications
IEC 60947 Low voltage switch gear and control gear
IEC 61373 Rolling stock equipment - Shock and vibration test
IEC 60947-5-1 Electromechanical components for control applications. This standard examines both coil and contact specifications in depth
EN 50121 Electromagnetic compatibility for railway applications
NF F 16-101/102, EN 45545-2 Fire behaviour - Railway rolling stock
