TDD4B2-U200 relay - 2 pole delay-on and 4 pole instantaneous

Name: TDD4B2-U200 relay - 2 pole delay-on and 4 pole instantaneous
Brand: Eigen merk
Availability: InStock

Informatie

Description

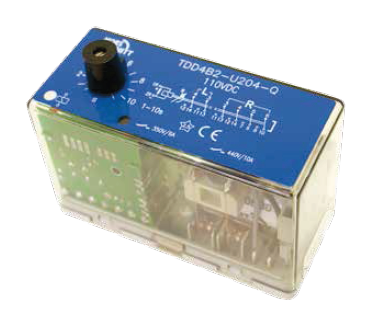

Plug-in electronic railway timer relay with four instantaneous change-over contacts and two time delayed change over contacts. When the relay is activated there is a delay on pull-in for the time delayed contacts. The timer relay has a fixed customer specified delay time, but can also be supplied with an adjustable delay time (with lockable knob). The delayed contacts are weld no transfer contacts. The relay is equipped with two LEDs which indicate the presence of power supply and the energizing of the time delayed contacts.

The construction of the relay and choice of materials makes the TDD4B2-U200 relay suitable to withstand low and high temperatures, shock & vibrating and dry to humid environments.

No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions.

Compact design, choice of many options and a wide range of sockets makes the TDD4B2-U200 relay an easy and flexible solution to use.

Application

These relay series are designed for demanding rolling stock applications. The TDD4B2-U200 is used in applications where both instantaneous contacts and time delayed contacts are necessary.

Features

Time delay and instantaneous relay
2 C/O contacts with delay on pull-in and 4 C/O instantaneous contacts
Fixed time delay (no knob)
Also available with adjustable time delay with lockable knob
Total time delay range: 0.1 s...60 min
Flat, square and silver plated relay pins for excellent socket connection

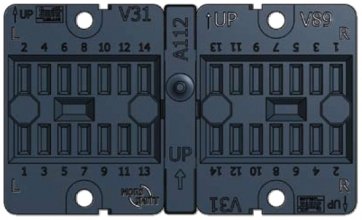

Wide range sockets
Integrated snap lock
Transparent cover
Optional positive mechanical keying relay to socket
Flexibility by many options

Benefits

Proven reliable
Long term availability
Easy to maintain
Low life cycle cost
No maintenance

Railway compliancy

EN 50155 Electronic equipment used on rolling stock for railway applications IEC 60571 Electronic equipment used on railway vehicles
IEC 60077 Electrical equipment for rolling stock in railway applications
IEC 60947 Low voltage switch gear and control gear
IEC 61373 Rolling stock equipment - Shock and vibration test
IEC 60947-5-4 Electromechanical components for control applications. This standard examines both coil and contact specifications in depth
EN 50121 Electromagnetic compatibility for railway applications
NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
NF F 62-002 On-off contact relays and fixed connections
