Relaisvoeten

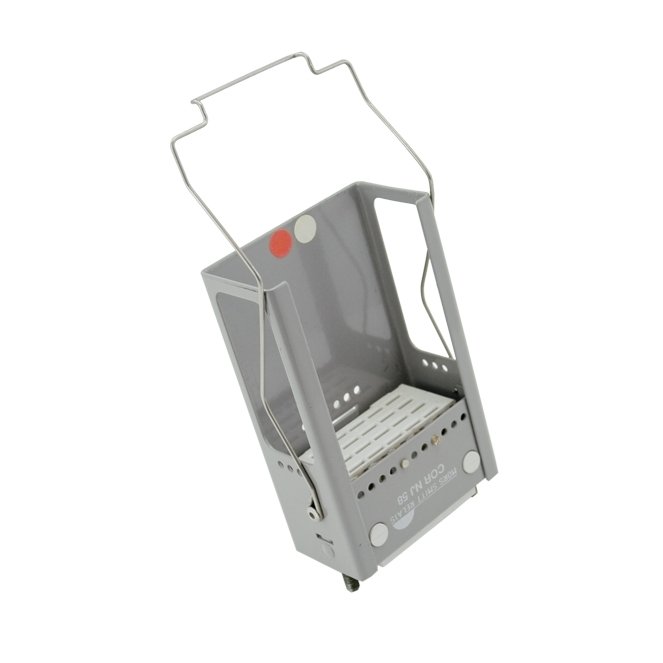

COR NJ relay socket

Informatie

Description

The COR NJ socket has single faston 5 x 0.8 mm faston terminals are required for proper connection.

The COR NJ socket is equipped with a wire locking spring. Keying rivets are provided installed on the socket with matching relay keying.

The COR NJ socket is suitable for all C-type relays and modules.


Application

The COR NJ socket is designed for panel mount of relays and modules with single faston rear connection.


Features

  • Rear connection, with single faston 5 mm
  • No internal soldering / connections
  • For panel mount
  • Wire locking spring
  • COR NJ suitable for all C-relays and modules (C, SC, CM)
  • -40 °C...+80 °C operating temperature

Benefits

  • Proven reliable
  • Long life cycle
  • Easy to maintain and replace
  • Low life cycle cost
  • No maintenance

Railway compliancy

  • NF F 62-002 Rolling stock - Instantaneous relay contacts and sockets
  • NF F 16-101/102 Fire behaviour - Railway rolling stock
