EA103 relay socket

Name: EA103 relay socket
Brand: Eigen merk
Availability: InStock

Informatie

Description

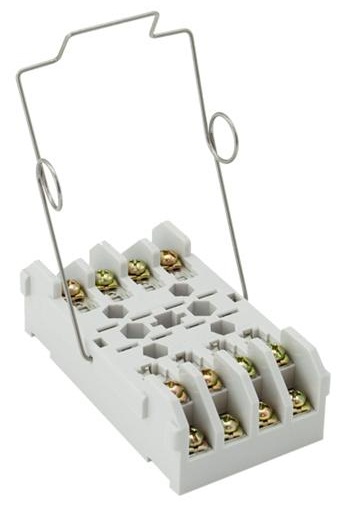

The EA 103 socket has M3 screw 6.5 mm ring terminal to allow front connection on the socket.

The EA 103 AF or BF socket is equipped with wire locking spring mechanism. Hexagonal plastic keys and round plastic plugs are provided for relay type coding, but not inserted. Keying can be provided as an option with matching relay keying.

The EA 103 AF socket is suitable for all A type relays and modules.

The EA 103 BF socket is suitable for all B type relays and modules.

Application

The EA 103 socket is designed for surface mount of relays and modules with screw terminals connection and provide optional 35 mm rail mount accessory.

Features

Front connection, with screw terminals
No internal soldering / connections
For surface or optional 35 mm rail mount
Wire locking spring
EA 103 AF suitable for all A series relays and modules (A 400, AK, AM, AG, TALOR, TAC)
EA 103 BF suitable for all B series relays (B 400, BK, BM, BG, TBBU)
-40 °C...+80 °C operating temperature

Benefits

Proven reliable
Long life cycle
Easy to maintain and replace
Low life cycle cost
No maintenance

Railway compliancy

NF F 62-002 Rolling stock - Instantaneous relay contacts and sockets
NF F 16-101/102 Fire behaviour - Railway rolling stock
