V93BR socket - Screw terminal, rail mount 8 pole

Name: V93BR socket - Screw terminal, rail mount 8 pole
Brand: Eigen merk
Availability: InStock

Informatie

Description

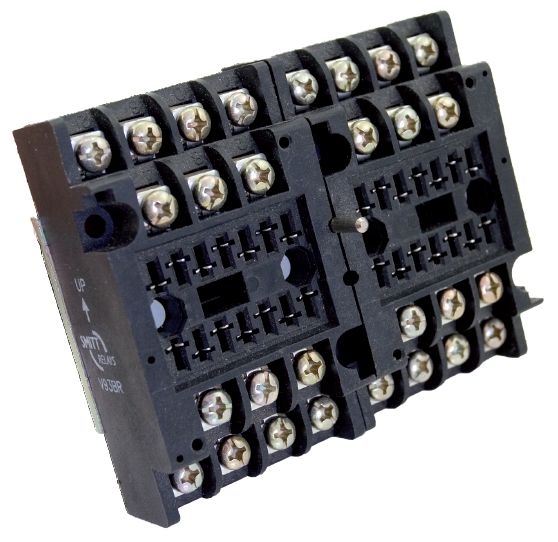

The V93BR is a 35 mm rail mount relay socket with extra space for ring tabs. The V23BR socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2 and 9 mm ring tabs, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed.

To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays.

Clear UP arrow for correct 35 mm rail mounting.

Application

The V93BR relay socket is suitable for general railway applications with a spacesaving design, where extra space for ring tabs is necessary. Installation and replacement of relays is made easy and costsaving. No maintenance is required for the user.

Suitable for all D8 and KDN relay series.

Features

35 mm rail mount
Sturdy screw terminals
Suitable for 9 mm ring tabs
Height saving 35 mm rail mounting
Suitable for all D8 and KDN relay series
Up to two wires of 2.5 mm2 per connection terminal
Positive mechanical keying
Bifurcated female receiver for tight grip relay pin
Clear terminal ID

Benefits

Proven reliable
Long term availability
Easy to maintain
Low life cycle cost
No maintenance

Railway compliancy

EN 50155 Electronic equipment used on rolling stock for railway applications
IEC 60571 Electronic equipment used on railway vehicles
NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
IEC 60715 Dimensions of low voltage switchgear and controlgear - mounting rail
NF F 62-002 On-off contact relays and fixed connections
