V33 socket – push-in terminal, panel mount

Description

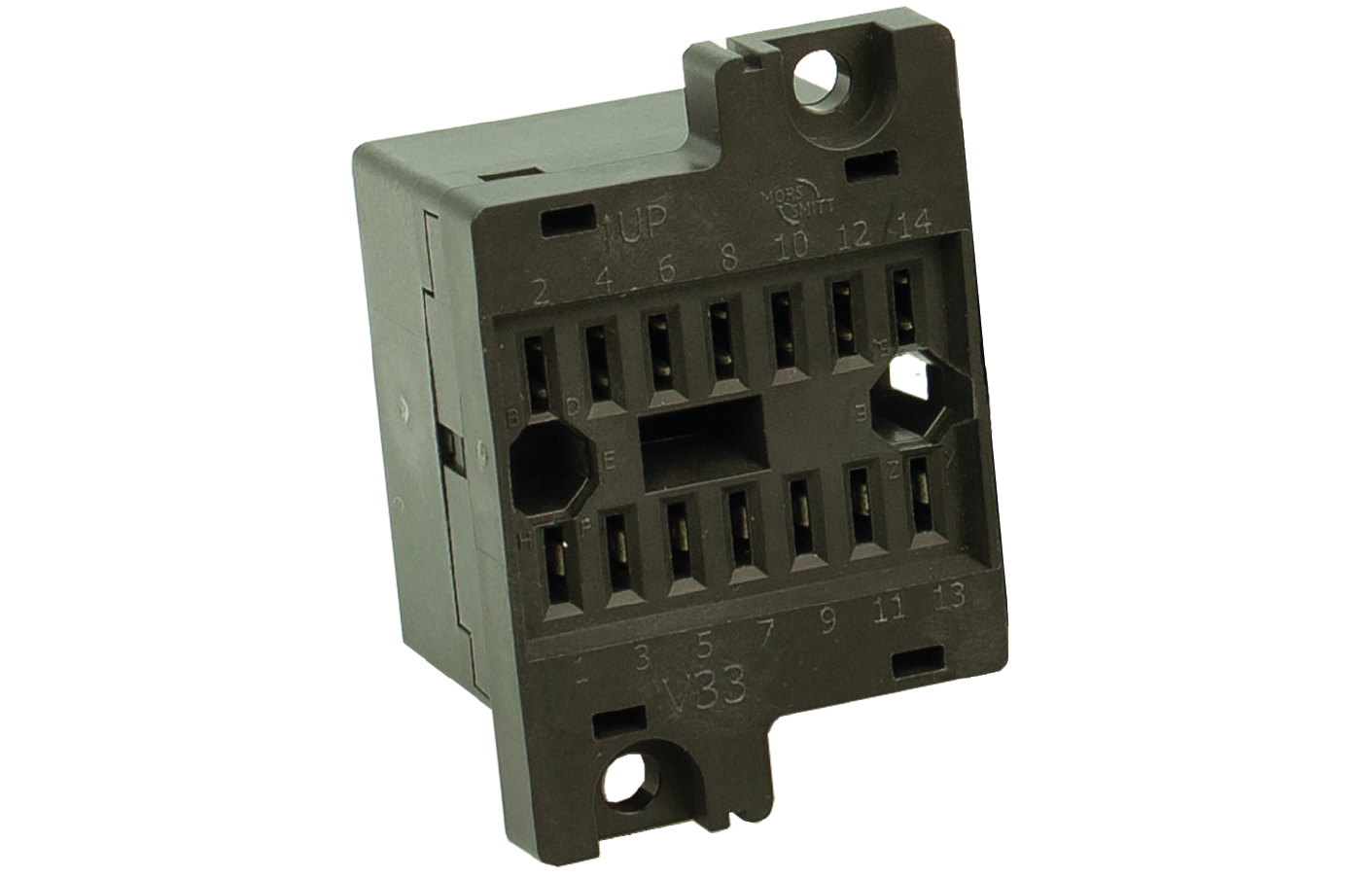

The V33 is a panel/flush mount relay socket. The V33 socket has a base with two highly reliable push-in terminals per relay contact, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed.

Solid and stranded wires with ferrules can be inserted without using a tool or pressing a lever. Wires up to 3.3 mm² can be inserted. This quick & easy wiring method saves up to 75% wiring time. Pinning on the socket complies with pinning
on the relay.

To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays.

Application

Features

• Panel / flush mount
• Very compact solution
• Sturdy push-in terminals
• Solid and stranded wires with ferrules can be inserted easily without using a tool
• Stranded wires without ferrules can be inserted with a flatbladed screwdriver
• Twin connection per relay contact
• Large wires up to 3.3 mm² (AWG 12)
• High density matrix of relay/sockets possible, horizontal and vertical stacked
• Suitable for all railway and industry D- & D-U relay series
• Easy & quick installation (up to 75% reduction of wiring time)
• Positive mechanical keying
• Trifurcated female receiver for tight grip relay pin
• Clear terminal ID

Railway compliancy

• EN 50155
• IEC 60571
• EN 45545-2
• NF F16-101/102
• NF F 62-002
• IEC 61373
