NSE relay - Over- and undervoltage monitoring

Name: NSE relay - Over- and undervoltage monitoring
Brand: Eigen merk
Availability: InStock

Obsolete

Informatie

Description

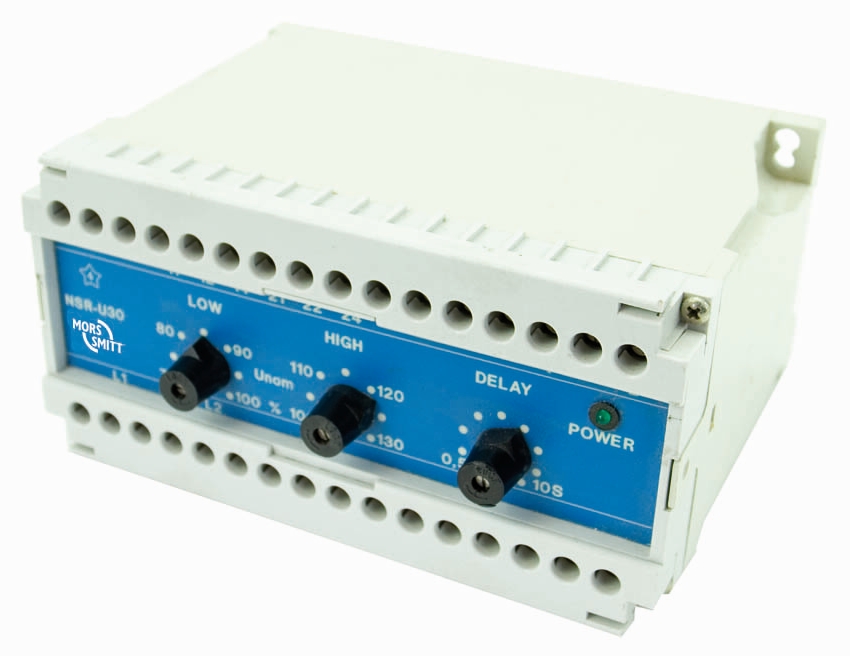

Overvoltage and undervoltage monitoring railway relay with two change-over contacts. Suitable for AC 50 Hz voltages. Auxiliary power supply necessary, either DC or AC (0...60 Hz). When the relay is activated there is a delay on pull-in. The delay time is adjustable with a lockable knob. The overvoltage and undervoltage are also adjustable with a lockable knob.

The NSE-relay has a fail-safe circuit: also an auxiliary supply failure is detected.

The construction of the relay and choice of materials makes the NSE-relay suitable to withstand corrosive atmospheres, low and high temperatures, shock & vibrating and dry to very humid environments.

No external socket necessary, the relay can be mounted directly on a 35 mm rail without extra fasteners, or on any surface via 2 screws.

Application

These relay series are designed for rolling stock applications. The NSE-relay
is used in applications for overvoltage and undervoltage monitoring.

Features

Overvoltage and undervoltage monitoring relay with delay on pull-in
AC input (50 Hz)
2 C/O contacts
Overvoltage and undervoltage adjustable via lockable knobs
Overvoltage adjustment: 100...130%
Undervoltage adjustment: 70...100%
Delay time adjustable via lockable knob
Time delay range: 1...10 s
Auxiliary power supply necessary
Auxiliary power supply failure also detected
Screw terminals IP 20
Mounting on 35 mm rail
Mounting on any surface via 2 screws

Benefits

Proven reliable
Long term availability
Easy to maintain
Low life cycle cost
No maintenance

Railway compliancy

EN 50155 - Electronic equipment used on rolling stock for railway applications
IEC 60571 - Electronic equipment used on railway vehicles
IEC 60077 - Electrical equipment for rolling stock in railway applications
IEC 60947 - Low voltage switch gear and control gear
IEC 61373 - Rolling stock equipment - Shock and vibration test
IEC 60947-5-4 - Electromechanical components for control applications
EN 50121 - Electromagnetic compatibility for railway applications
