KCS-U200 relay - Latching , 2 pole

Name: KCS-U200 relay - Latching , 2 pole
Brand: Eigen merk
Availability: InStock

This relay is obsolete from January 1, 2023

Informatie

Description

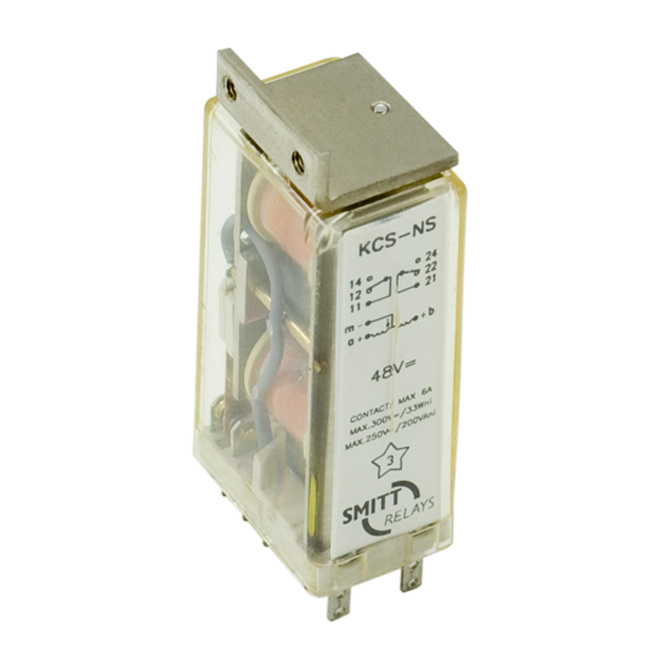

Bistable railway relay with two change-over contacts. The contacts remain in the last powered position. Bistable by means of two coils and a mechanical rocker mechanism. The two separate coils are galvanically isolated. The contacts are weld-no-transfer contacts: they are mechanically forced in the same position.

The KCS-U200 relay is a compact design relay connected with 2.8 x 0.8 mm fastons. The construction of the relay and choice of materials makes the KCS-U200 relay suitable to withstand low and high temperatures, shock & vibrating and dry to humid environments.

Application

These relay series are designed for demanding rolling stock applications. The KCS-U200 is used in applications where two contacts are used in one relay and the contacts are set and reset with permanent power or impulses.

Features

Latching (bistable) relay
Compact design
2 C/O contacts
2 galvanic isolated coils
Weld-no-transfer contacts
Flash barrier
2.8 x 0.8 faston connections
Transparent cover

Benefits

Proven reliable
Long term availability
Easy to maintain
Low life cycle cost
No maintenance

Railway compliancy

EN 50155 Electronic equipment used on rolling stock for railway applications
IEC 60571 Electronic equipment used on railway vehicles
IEC 60077 Electrical equipment for rolling stock in railway applications
IEC 60947 Low voltage switch gear and control gear
IEC 61373 Rolling stock equipment - Shock and vibration test
IEC 60947-5-4 Electromechanical components for control applications. This standard examines both coil and contact specifications in depth
EN 50121 Electromagnetic compatibility for railway applications
NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
NF F 62-002 On-off contact relays and fixed connections
