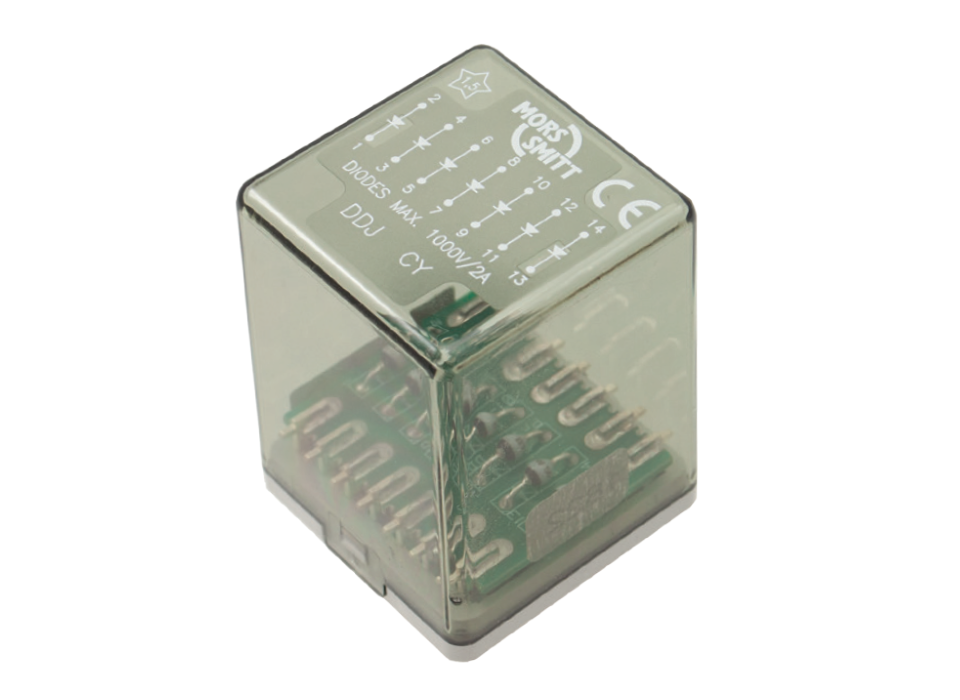

DDK/DDJ Diode unit

Description

The DDK/DDJ diode unit consists of a D-relay housing containing 4/7 electrically isolated diodes. This gives the possibility to use them in different electrical circuits.

Application

The DDK/DDJ module is designed for demanding rolling stock applications.

Features

• 4 or 7 electrically isolated diodes for different electrical circuits
• Easy way to add/replace blocking diodes, diodes bridges in electrical systems
• Compact and efficient way to mount diodes in circuits
• Number and type of diodes customizable upon request
• Different sockets available for optimized mounting and terminals
• D-relay transparent housing
• Keying code optional, ensuring easy and correct installation and replacement
• Can be used in safety critical applications
• Low life cycle cost
• No maintenance needed

Approvals

• EN 50155
• EN 50121-3-2
• IEC 61373
