Frequency Sensing

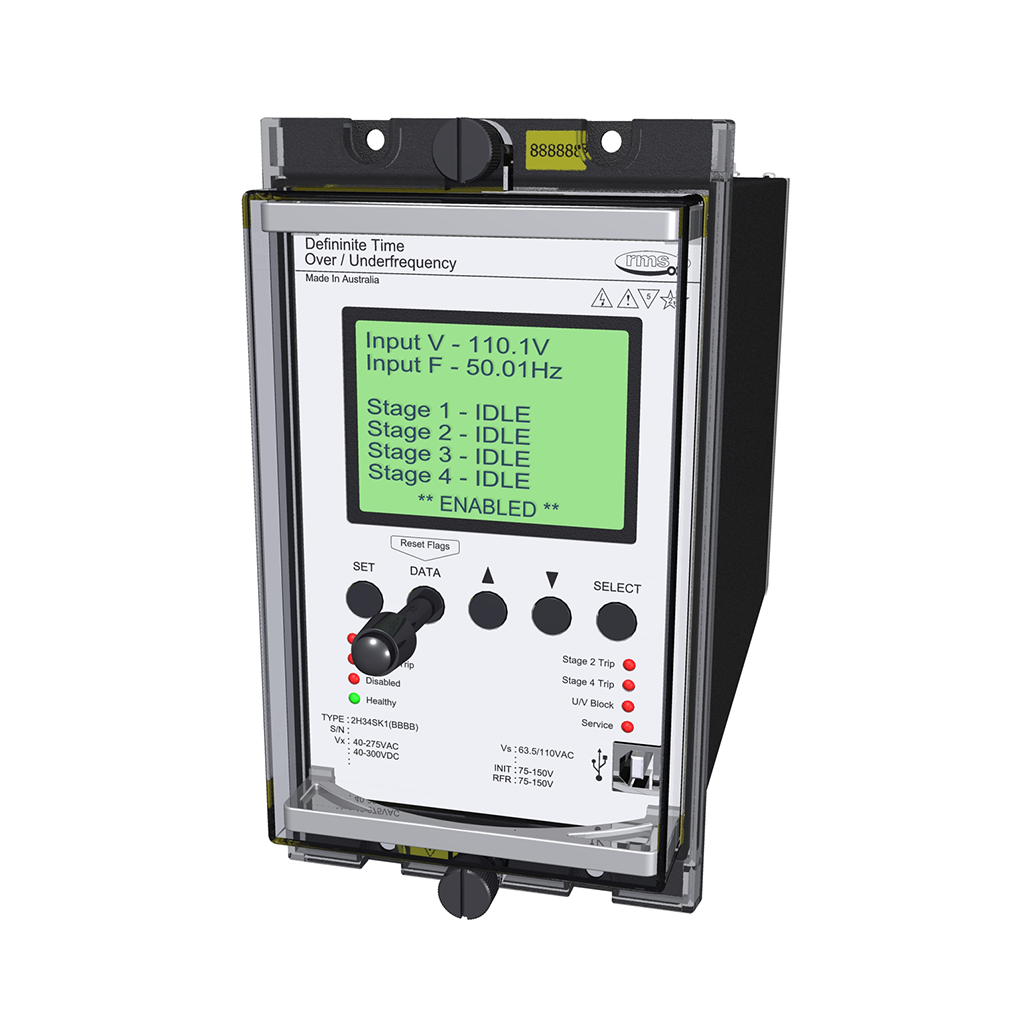

2H34-S Four Stage Frequency Relay
Informatie
Features
-
uMATRIX PLATFORM
-
Large STN graphics LCD
-
System status LED indicators
-
Simple menu setting procedure
-
40-300V DC aux. supply
-
40-275V AC aux. supply
-
20-70V DC aux. Optional
-
Self diagnosis & fail alarm
-
Size 4 case
-
Made in Australia
Description
The 2H34-S Series relay is a frequency monitoring relay with four stages of adjustable frequency pick up & drop out points. Each frequency set point can be set for under or over frequency operation & has an independent time delay driving an output relay. An undervoltage lockout is used to disable the four frequency outputs when the voltage falls below a preset level. Each of the four setting stages has a rate of change of frequency (ROCOF) element with an independent time delay.
The dF/dt element is available to operate as an AND or an OR logic function with the frequency element driving a common output contact per stage. A separate Under Voltage & Over Voltage stage are provided for alarm functions.
The 2H34-S relay is built on the Micro MATRIX-S digital platform. The standard Micro MATRIX human machine interface (HMI) is combined with fully solid state frequency sensing & measuring circuitry to provide high accuracy, simple set up & flexible operation. Self-monitoring is carried out by hardware & software watchdogs. A USB programming port is provided for ease of establishing relay settings using a PC.
Changes introduced on the 2H34-S
-
Case length reduced by 18mm to suit 4M56-S case;
-
LED backlighting to reduce EMC emissions – contrast adjustment no longer required;
-
Front panel USB programming port to increase data transfer speed and improve compatibility with notebook PC’s;
-
Network communications port is now optional to maintain low cost of base model;
-
Network communication port maintained the optically isolated RS485 serial port but the RS232 configuration option has been deleted;
-
New current and voltage channels to improve measurement stability;
-
New status input option covering 18-275V AC and 300V DC range;
-
Updated switchmode power supply to reduce EMC emissions and improve transient overload protection;
-
Surface mount production technology to allow increased component density for additional functionality now and in the future.
What has not changed from the 2H34
-
I/O and basic functionality has been maintained;
-
Basic menu structure and operation has been maintained;
-
Electrical terminal mapping has not changed allowing existing wiring diagrams to be maintained;
-
Compatibility with existing application software back to version 0500 maintained;
-
Compatibility with existing uMATRIXwin programming software maintained;
-
Modbus RTU network communication protocol maintained Case size 4 has been maintained although the length has been reduced.
-
