Timer relais

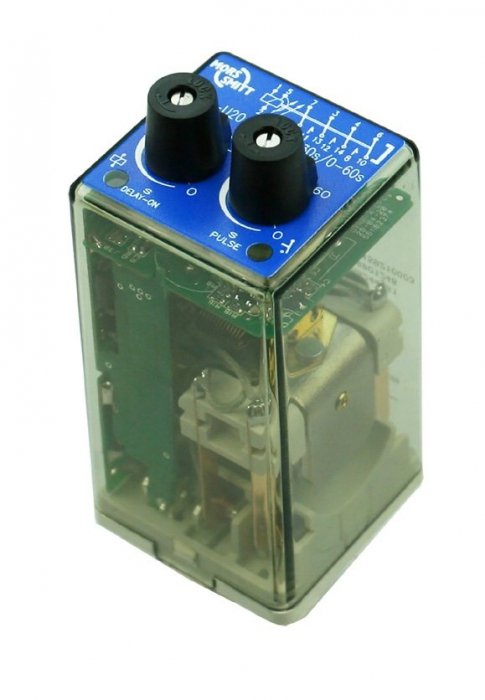

• Compact plug-in design
• 3 C/O and 1 N/C contact
• Independently adjustable delay-on and pulse time
• Many options and sockets available

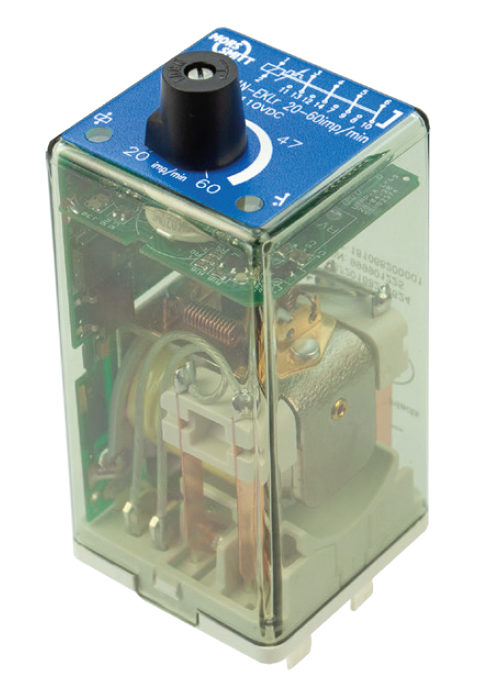

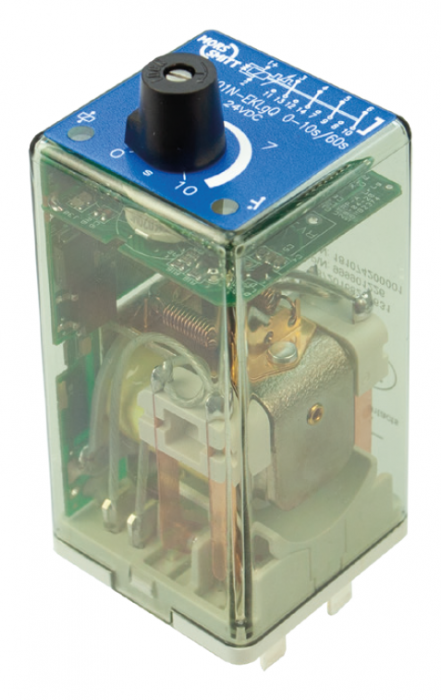

• Flashing relay (symmetrical)
• Duty cycle: 50 %
• Compact plug-in design
• 4 C/O contacts
• Pulse frequency adjustable with a lockable knob
• Also available with a fixed pulse frequency (no knob)
• Magnetic arc blow-out ensuring long contact life
• Two LEDs for status indication, red or green
• Minimum switching current 1 mA
• Maximum continuous current 10 A
• Wide temperature range -40 ⁰C...+70 ⁰C
• Mechanical life > 30 million operations
• Electrical life e.g. > 10 million operations at 0.5 A, 24 VDC
• Data matrix code with serial number for traceability
• Integrated snaplock, no external retaining clip needed
• Transparent cover for visual inspection
• Many options and sockets available

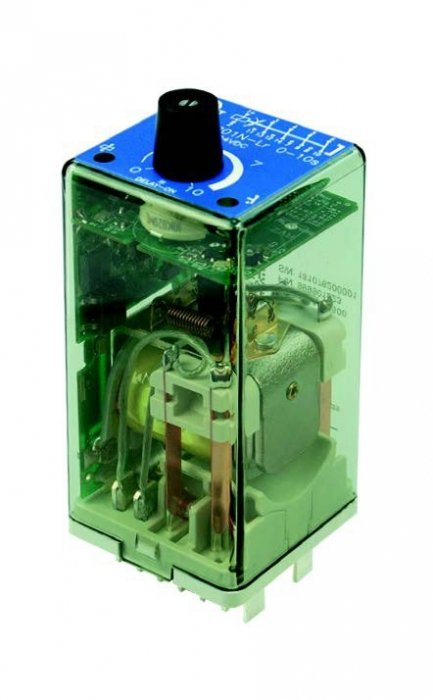

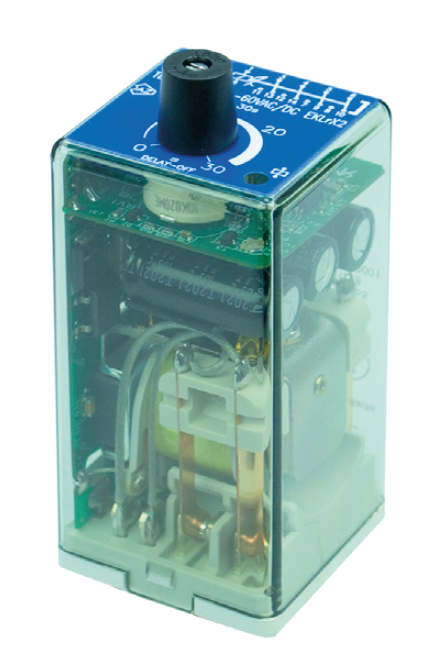

• Time delay relay, delay on drop-out
• No auxiliary power supply necessary
• Compact plug-in design, 4 C/O contacts
• Delay time adjustable by lockable knob
• Also available with fixed time delay
• Total time delay range: 0 s...180 s
• Magnetic arc blow-out ensuring long contact life
• Back EMF suppression diode
• One LED for voltage presence, red or green
• Suitable for AC and DC voltage
• Minimum switching current 1 mA
• Maximum continuous current 10 A
• Wide temperature range -40 ⁰C...+70 ⁰C
• Mechanical life > 30 million operations
• Electrical life e.g. > 10 million operations at 0.5 A, 24 VDC
• Data matrix code with serial number for traceability
• Integrated snaplock, no external retaining clip needed
• Transparent cover for visual inspection
• Many options and sockets available

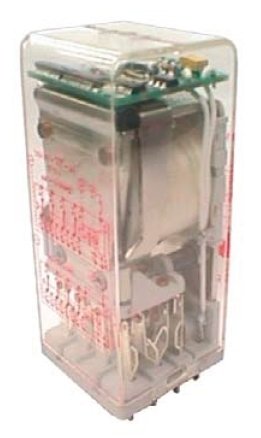

• Time delay relay, delay on pull-in
• Compact plug-in design
• 2 C/O contacts
• Delay time adjustable with lockable knob
• Also available with fixed time delay
• Total time delay range: 0.1 s...30 min
• Weld-no-transfer contacts
• Flat, square and silver plated relays pins for excellent socket connection
• Wide range sockets
• Integrated snap lock
• Transparent cover
• Optional positive mechanical keying relay to socket

• Delay on plug-in
• Delay range from 0.25 s up to 63.75 min
• Time delay fully programmable by dip switch
• Status LED indicator
• Plug-in design with secure locking feature for maximum ease of maintenance
• 4 double make / double break C/O contacts (form Z), 12 A
• In standard with weld no transfer contacts
• -40 °C....+85 °C operating temperature

• Delay-on drop-out relay
• Fixed time delay < 10 s (set in factory)
• Plug-in design with secure locking feature for maximum ease of maintenance
• 4 double make / double break C/O contacts (form Z), 8 A
• Contact life (mechanical) of 100 million cycles
• -40 °C...+85 °C operating temperature

• Delay-on drop-out relay with negative command
• Delay range 0.25 s...63.75 min
• Time delay fully programmable by dip switch
• Status LED indicator
• Plug-in design with secure locking feature for maximum ease of maintenance
• 4 double make / double break C/O contacts (form Z), 12 A
• Weld no transfer contacts standard
• Contact life (mechanical) of 100 million cycles
• -40 °C...+85°C operating temperature

• Delay-on pull-in or drop-out relay
• Extended delay range 0.25 h...255 h
• Time delay fully programmable by dip switch
• Status LED indicator
• Plug-in design with secure locking feature for maximum ease of maintenance
• 4 double make / double break C/O contacts (form Z), 8 A
• Optional weld no transfer contacts
• Contact life (mechanical) of 100 million cycles
• -40 °C....+85 °C operating temperature

• Delay-on plug-in or on drop-out relay
• Extended delay range 0.25 h...255 h
• Time delay fully programmable by dip switch
• Status LED indicator
• Plug-in design with secure locking feature for maximum ease of maintenance
• 4 double make / double break C/O contacts (form Z), 12 A
• Weld no transfer contacts standard
• Contact life (mechanical) of 100 million cycles
• -40 °C...+85 °C operating temperature

• Delay-on plug-in or on drop-out relay
• Extended delay range 0.25 s...63.75 min
• Time delay fully programmable by dip switch
• Status LED indicator
• Plug-in design with secure locking feature for maximum ease of maintenance
• 4 double make / double break C/O contacts (form Z), 8 A
• Optional weld no transfer contacts
• Contact life (mechanical) of 100 million cycles
• -40 °C....+85 °C operating temperature

• Symmetrical flashing function
• Pulse duration 0.25 s...63.75 min
• Pulse duration fully programmable by dip switch
• Status LED indicator
• Plug-in design with secure locking feature
• for maximum ease of maintenance
• 4 double make / double break C/O contacts (form Z), 10 A
• -40 °C...+85 °C operating temperature.

• 2 flashing periods programmable
• 1st period 0.1 s...7.5 s and 2nd period 1 s...150 s
• Time delay is achieved by comination of relay dip switch
• Status LED indicator
• Plug-in design with secure locking feature for maximum ease of maintenance
• 4 double make / double break C/O contacts (form Z), 12 A
• Weld no transfer contacts standard
• Contact life (mechanical) of 100 million cycles
• -40 °C...+85 °C operating temperature
